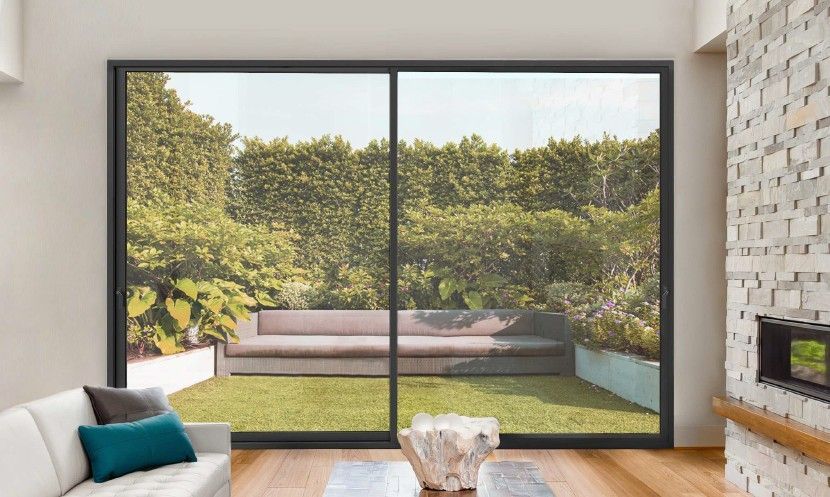

Cortizo 4700 Inline Slider

It is an ideal solution for closing large spans. It presents modern aesthetics in straight lines, a reduced interlock section and large glazed surfaces that ensure bright and comfortable areas, due to its thermal and acoustic performance.

Product Specifications

» Sightlines:  Frame Depths 115mm and 120mm – 185mm for triple track

» Interlock:  only 47mm



» Glazing:  Max. 36 mm Min. 26 mm

» Opening possibilities:

• Sliding of 2, 3, 4, 6 & 8 sashes
• Possibility of 1 rail (1 sash+ 1 fixed)
• Possibility of 2, 3 & 4 rails
• Possibility pocket solution 1, 2, 3 & 4 sashes

» Maximum dimensions/sash:

• Width (L) = 2,500 mm
• Height (H) = 3,000 mm

» Maximum weight/sash:  Slide: 280 Kg

» Finishes:

• Possibility of dual colour systems
• Colour powder coating (RAL, mottled and rough)
• Wood effect powder coating
• Anti-bacterial powder coating
• Anodised

» Transmittance:  Uw ≥  1.00 (W/m²K)

» Maximum acoustic insulation:  Rw = 40 dB

» Air permeability:  (EN 12207) Class 3

» Water tightness:  (EN 12208) Class 7A

» Wind resistance:  (EN 12210) Class C5

» Security test PAS24:  Pass
