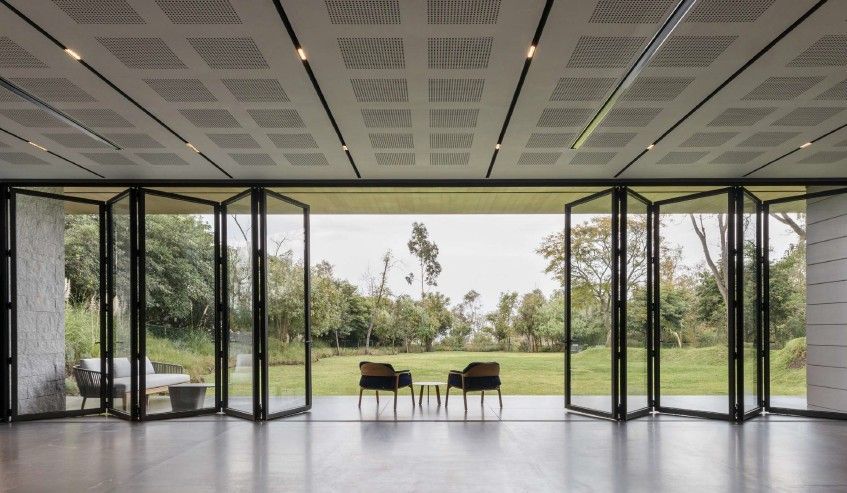

Cortizo Bi-Fold Door Plus

Separate environments and unify spaces with this bi-fold door system with an 80 mm deep frame.

This evolution of the Bi-fold series offers an excellent thermal and acoustic performance, thanks to its 45 mm thermal bridge breakage and a glazing capacity up to 48 mm.

Besides, it presents a slim central section of 110 mm which allows the maximisation of the glazed surface, filling the interior spaces with natural light.

Product Specifications

» Sightlines: Frame 80 mm, Sash 80 mm

» Glazing:  Max. 48 mm Min. 25 mm

»  Opening possibilities:

• Inward opening -  Up to 14 sashes
• Outward opening -  Up to 14 sashes 90º corner sash without mullion

» Maximum sash dimensions:

• Width (L) 1200 mm
• Height (H) 3000 mm

» Maximum sash weight:  120 Kg

Consult maximum weight and dimensions according to typologies.

» Finishes:

• Possibility of bicolour systems
• Colour powder coating (RAL, mottled and rough)
• Wood effect powder coating
• Anti-bacterial powder coating
• Anodized

» Transmittance : Uw ≥ 0,78 (W/m²K)
Consult maximum weight and dimensions according to typologies

» Air permeability:  (EN 12207) Class 4

» Water tightness:  (EN 12210) Class E750

» Wind resistance:  (EN 12210) Class C3

» Repeated openings and closings:

• 50.000 cycles (Main swing door)
• 25.000 cycles (Even sashes) (Even sashes)

» Security test PAS24:  Passed
